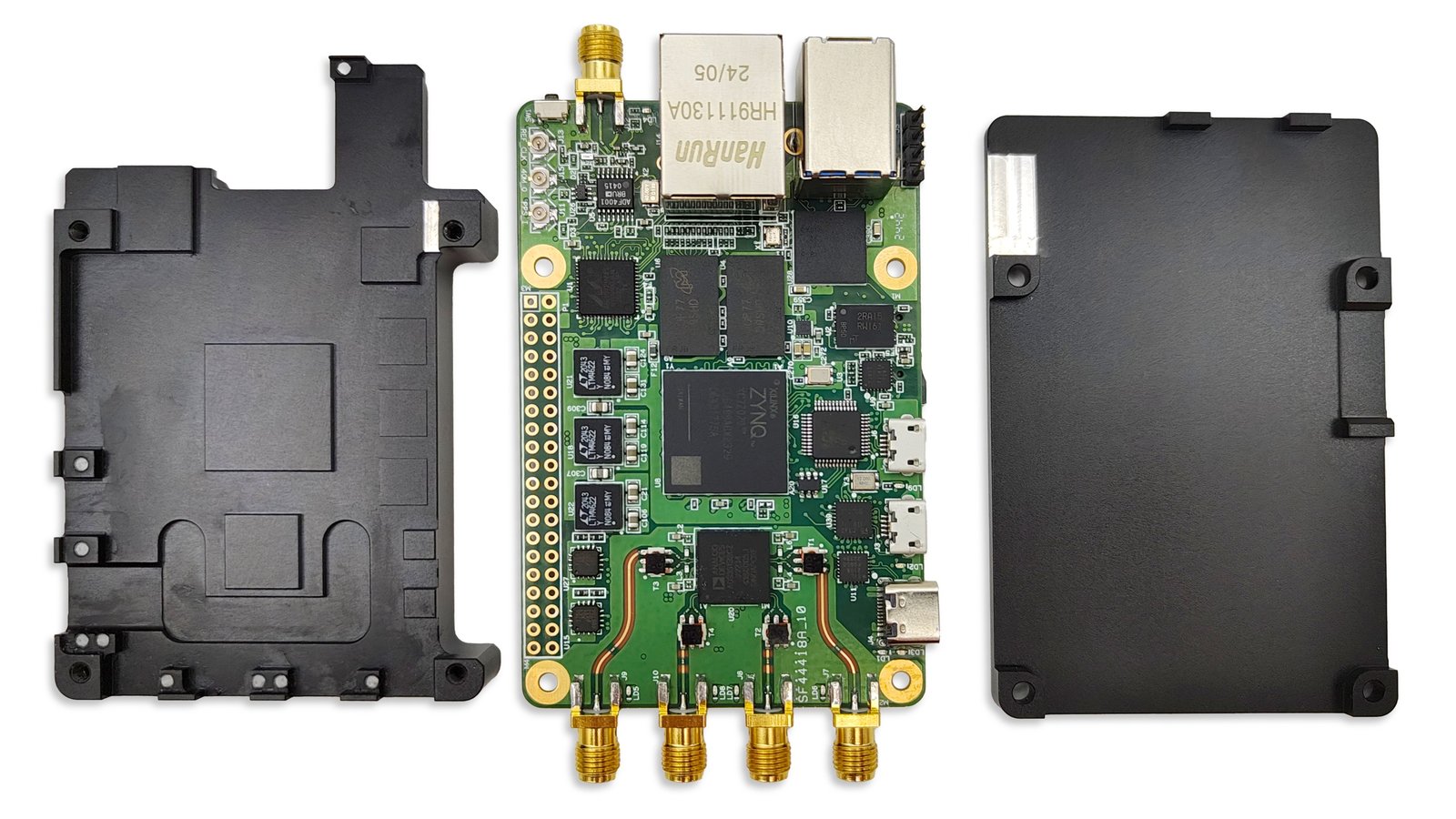

SignalSDR Pro A rugged, compact, high-performance Software-Defined Radios #DIYElectronics

 SignalSDR Pro, now live on Crowd Supply. Combining a rugged design, compact size, and exceptional performance, SignalSDR Pro is poised to transform how enthusiasts and professionals approach SDR projects. Here's a deep dive into what makes this device stand out and why it's creating buzz in the open-source hardware community.

SignalSDR Pro A rugged, compact, high-performance Software-Defined Radios #DIYElectronics

Portability Meets Performance

SignalSDR Pro packs advanced capabilities into a device no larger than a credit card or Raspberry Pi single-board computer. Its compact form factor ensures easy portability, making it ideal for field applications and laboratory settings alike. From signal processing and spectrum analysis to building communication systems, SignalSDR Pro offers unmatched versatility without the burden of bulky equipment.

Unparalleled Compatibility & Software Support

One of the standout features of SignalSDR Pro is its flexibility in integrating with existing workflows. A simple jumper setting change and microSD card swap unlock compatibility with leading SDR hardware platforms like ADALM-PLUTO and USRP B210.

On the software side, SignalSDR Pro supports a rich ecosystem of tools, including:

This broad compatibility ensures that SignalSDR Pro seamlessly fits into diverse SDR applications, from LTE network sniffing to building custom 5G solutions.

SignalSDR Pro

Features & Specifications

SignalSDR Pro delivers robust features designed for professionals and hobbyists:

  • Transceiver Chipset: AD9361
  • FPGA: AMD Zynq™ 7020 SoC
  • Frequency Range: 70 MHz - 6 GHz
  • Interfaces: Gigabit Ethernet, USB 3.0
  • Sampling Rate: 61.44 MSPS
  • Resolution: 12 bits
  • Channels: 2 Tx / 2 Rx, Full Duplex
  • Bandwidth: 85 kHz - 61.44 MHz

These specifications rival high-end SDR devices while maintaining affordability and portability.

Applications

SignalSDR Pro unlocks possibilities across various domains:

  1. Spectrum Monitoring: Analyze and visualize wireless signals in real time.
  2. Communication Systems: Build GSM, LTE, and 5G networks.
  3. Signal Intelligence: Intercept and analyze signals for research or security purposes.
  4. Educational Tools: Perfect for students and professionals exploring SDR.
  5. GPS Simulation: Generate and manipulate GPS signals for testing.

Its versatility extends to professional-grade tasks and experimental projects alike.

How SignalSDR Pro Stands Out

Compared to other SDR devices, SignalSDR Pro strikes a balance between performance, compatibility, and price. Here's a quick snapshot of its strengths:

  • Wide frequency range (70 MHz - 6 GHz).
  • High sampling rate (61.44 MSPS).
  • Advanced interfaces like Gigabit Ethernet and USB 3.0.
  • Compact and rugged design.

Pinouts and Design

SignalSDR Pro boasts thoughtfully designed pinouts for maximum functionality, including full GPIO accessibility and external clock references. These design choices enable seamless integrations, whether you're stacking the device with other hardware or connecting external peripherals.

Support & Documentation

SignalSDR Pro offers comprehensive documentation and an active GitHub repository for its users. Tutorials include topics such as:

  • Building 5G base stations.
  • Fuzzing 5G networks.
  • Working with GNU Radio and MATLAB.

This ensures users can quickly get started and fully leverage the device's potential.

SignalSDR Pro is a rugged yet powerful SDR that bridges the gap between affordability and professional-grade features. Its portability, compatibility, and impressive specifications make it an indispensable tool for anyone in the SDR ecosystem.

If you're an open-source hardware enthusiast or a professional working with wireless technologies, SignalSDR Pro deserves a spot in your toolkit. Check it out on Crowd Supply today and unlock a new world of SDR possibilities!
